Description

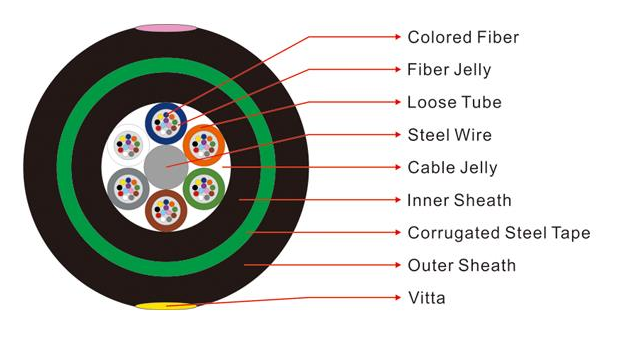

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material
Standards
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm |
|
|
Attenuation (+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
|
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
|
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
|
|
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static
/Dynamic mm | GYTY53-2~6 | 2~6 | 1 | 5 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-8~12 | 8~12 | 2 | 4 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-14~18 | 14~18 | 3 | 3 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-20~24 | 20~24 | 4 | 2 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-26~30 | 26~30 | 5 | 1 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-32~36 | 32~36 | 6 | 0 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-38~48 | 38~48 | 4 | 1 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-50~60 | 50~60 | 5 | 0 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-62~72 | 62~72 | 6 | 0 | 15.0 | 215 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-74~84 | 74~84 | 7 | 1 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-86~96 | 86~96 | 8 | 0 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-98~108 | 98~108 | 9 | 1 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-110~120 | 110~120 | 10 | 0 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-122~132 | 122~132 | 11 | 1 |
Description The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Characteristics · Good mechanical and temperature performance · High strength looes tube that is hydrolysis resistant · Special tube filling compound ensure a critical protection of fiber · Crush resistance and flexibility · The following measures are taken to ensure the cable watertight: - Steel wire used as the central strength member - Loose tube filling compound - 100% cable core filling - PSP enhancing moisture-proof - Water-blocking material Standards GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics G.652 | G.655 | 50/125μm | 62.5/125μm |
|
| Attenuation (+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km | @1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km | @1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
|
|
Technical Parameters Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static
/Dynamic mm | GYTY53-2~6 | 2~6 | 1 | 5 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-8~12 | 8~12 | 2 | 4 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-14~18 | 14~18 | 3 | 3 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-20~24 | 20~24 | 4 | 2 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-26~30 | 26~30 | 5 | 1 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-32~36 | 32~36 | 6 | 0 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-38~48 | 38~48 | 4 | 1 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-50~60 | 50~60 | 5 | 0 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-62~72 | 62~72 | 6 | 0 | 15.0 | 215 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-74~84 | 74~84 | 7 | 1 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-86~96 | 86~96 | 8 | 0 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-98~108 | 98~108 | 9 | 1 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-110~120 | 110~120 | 10 | 0 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D | GYTY53-122~132 | 122~132 | 11 | 1 |
